Product Overview

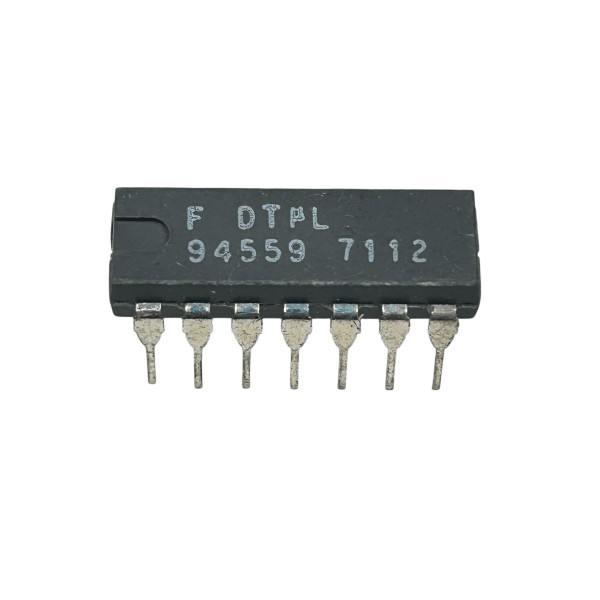

Fairchild DTPL 94559 Logic IC (DTL/TTL Logic Device)
What it is:
A Fairchild DTPL series digital logic IC, likely part of early DTL/TTL logic families used before modern CMOS logic became standard.
What it’s used for:
Used in digital circuits, control logic, early computers, and industrial electronics for implementing logic functions (gates, flip-flops, etc.).
Key Features:
- Early digital logic implementation, robust for industrial systems
Applications:
- Vintage computers, industrial control, digital logic circuits
Technical Specifications:
| Package Type | DIP (Dual Inline Package) |
| Pin Count | 14-pin |
| Mounting Type | Through-hole |
| Weight | ~0.2 oz each |
